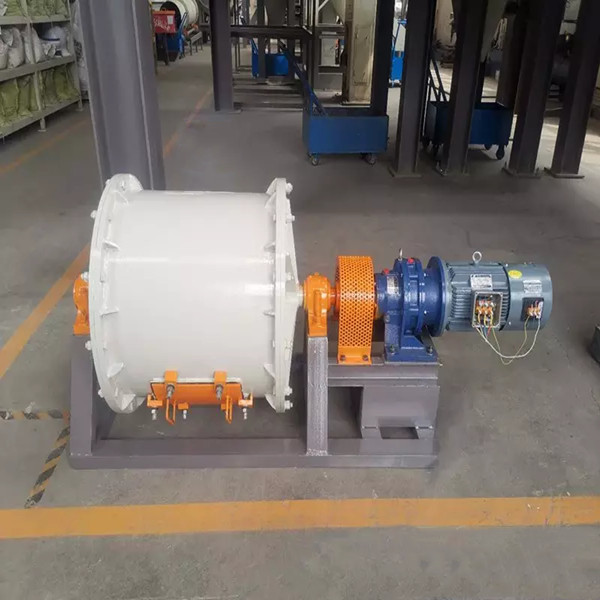

Metallurgy Wet Mining Flotation Lab Ball Mill Ceramic Liner
Introduction:
Metallurgy Wet Mining Flotation Lab Ball Mill Ceramic Liner is a wet mill, suitable for crushing materials in mining, coal,
building materials and water and electricity departments,
especially suitable for grinding materials in small mines. The
structure is compact, the performance of the whole machine is good,
and it is easy to transport and install, especially suitable for
small mobile concentrators.Ball mill is the key equipment for crushing materials after
crushing. A certain number of steel balls are loaded into the
barrel of this type of grinding machine as the grinding medium.
Technical Parameters:
Item |
Value | Unit |
Remarks | | Diameter |
Φ600 |
mm | |
Length |
1200 |
mm | | | Effective Volume |
0.267 |
3 | | | Mill Speed | Rod Mill | Ball Mill |
r/min | | | 31 | 43 | | Feed Size |
15~25 |
mm |
≤10mmBest | | Discharging Size |
0.074~0.5 |
mm | |
Motor | Type | Power | | | | Y132M26 | 5.5kw | | Rod Mill | | Y132M4 | 7.5kw | | Ball Mill |
Throughput |
80~600 |
Kg/h | | | Outline Size |
2983×938×930 |
mm | |
Weight |
2000 |
kg | |
|
work principle
The small ball mill is a horizontal rotary cylindrical device
driven by an external gear. When the small ball mill is working,
raw materials are evenly fed from the feed port through the hollow
shaft into the first chamber of the stepped liner or corrugated
liner with various steel balls of different sizes, and the
centrifugal force brings the steel balls to a certain height. The
balls fall down to impact, crush and grind the material. After the
qualified particles leave the first chamber, they enter the second
chamber with flat plates and steel balls through a separate
partition. The material is further ground in the cavity, and the
final qualified particles and powder are discharged from the
opening.
Feature of Ball mill
1) High efficiency and easy operation
2) Low maintenance cost
3) Wide applications
4) Reliable performance and convenient maintenance
5) Customized production and flexible configuration
Company profile
Y&X Beijing Technology Co., Ltd. was established in 2014 and is
located in Beijing, the capital of China. Our company has become a
professional enterprise integrating scientific research, design,
new product development, production and manufacturing with strong
technical force. As a family group, the mission from the beginning
was to expand overseas markets and provide one-stop professional
for overseas mining companies.
The company specializes in the research and supply of mineral
processing reagents and equipments, including mineral processing
equipment and laboratory mineral processing equipment; products are
widely used in metallurgy, geology, petroleum, coal, chemicals,
building materials, environmental protection, non-ferrous and
non-metallic mines, Research departments in industries such as
dressing plants, mineral processing laboratories in colleges and
universities.
Laboratory equipment for mineral processing: mainly include
crushing, grinding, screening, grading, magnetic separation,
flotation, assay, sample preparation, leaching,
analysis-electrolysis, shaking table, chute and other laboratory
equipment and gravity separation equipment.
Our products sell well in Russia, Mongolia, Chile, Australia,
Zimbabwe, Thailand, Laos, Indonesia,Tanzania, Nigeria and other
countries and regions.
The enterprise has passed the IS09001 quality management system
certification, and the product quality conforms to the relevant
technical standards promulgated by the state and the enterprise.
FAQ
1: What's the Ball mill components?
A:Gear,steel balls,high Mn steel linings or Rubber linings or PU
liners etc as the spare parts as belows.We can customize the ball
mill according to customer's requirement.
Q2: What's your MOQ?
A: we have no MOQ for our new customers, however a surcharge of
USD80 will apply for all orders less that USD 1000 for custom
handing cost purpose.
Q3: what is your payment terms?
A: The payment terms we accept is T/T or irrevocable L/C at sight,
T/T preferred.
Q4: What's the lead time for small order and mass production?
A: 1-3 working days for small order, and 3-10 working days for mass
production of material, and the final lead time will be subject to
each individual invoice.
Q5: What certification do you have?
A: We have ISO 9001:2008 certificate.
