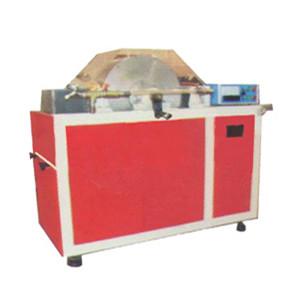

Multipurpose drum weak magnetic separator
Main uses and characteristics:
This machine is mainly used for mining engineering laboratories,
intermediate test plants, selection plants and small concentrators
to conduct small unit tests, continuous tests or production of
magnetic ores such as magnetite and roasted magnetite. when used.
It can also be used in machinery, electronics, etc. or other
industrial sectors to recover powdery, fine needle-like or
fine-grained ferromagnetic substances.
Parameter
| The main technical parameters |
| parameter item | Unit | XCRS-Φ400×240 |
| Sorting drum size | mm | Φ400×240 |
| Drum speed | r/min | 33 |
| The maximum magnetic field strength of the drum surface | A/m | 100000 |
| Oe | 1250 |
| Exciting current | A | 0~5 |
| Maximum feed size | mm | 2.5 |
| throughput | kg/h | 20~50 |
| Excitation rated power | VA | 875 |
| Excitation coil rated temperature | ℃ | <60 |
| Motor Power | w | 370 |
| Dimensions (L×W×H) | mm | 1068×636×982 |
| Body net weight | kg | 200 |
