XFGCⅡtype inflatable hanging tank flotation machine XFGⅡtype
hanging tank flotation machine
Introduction

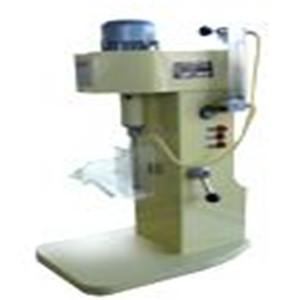

XFGC Ⅱ type inflatable hanging tank flotation machine is used for
laboratory stirring, scrubbing, separation and selection of a small
amount of mineral samples. The designed hollow shaft has the
characteristics of large inflatable volume, central inflatable,
stepless speed regulation by frequency converter, fast flotation
speed, and good selection index. XFGCⅡ-type inflatable hanging tank
flotation machine is a new generation product of XFGC-80 hanging
tank flotation machine. It adopts frequency conversion technology,
impeller stepless speed regulation, digital display, accurate
adjustment and reliable operation. XFGCⅡ-type inflatable hanging
tank flotation machine adopts external inflatable device, and the
inflation is adjustable, accurate and stable.
Parameter
| No. | project | Unit | Main technical parameters of inflatable hanging tank flotation
machine | Main technical parameters of hanging tank flotation machine |
| XFGⅡ 5-35 | XFGⅡ 50-100 | XFGⅡ 5~35 | XFGⅡ 50~100 | XFGⅡ 250~500 | XFGⅡ 1000 |
| 1 | flotation vessel | g | 5,15,25,35 | 50,100 | 5,15,25,35 | 50,100 | 250,500 | 1000 |
| 2 | Slot selection volume | ml | 20,60,100,140 | 200,400 | 20,60,100,140 | 200,400 | 100,2000 | 4000 |
| 3 | Diameter of impeller | mm | Φ18,Φ24,Φ24,Φ28 | Φ34,Φ36 | Φ18,Φ24,Φ26,Φ30 | Φ36,Φ48 | Φ60,Φ64 | Φ80 |
| 4 | Impeller speed | r/min | 0~2600 |
| 5 | Feeding particle size | mm | 0.05~0.2 |
| 6 | electric motor | type | YS-5612 2800r/min 90W | YS-5612 2800r/min250W |
| 7 | Dimensions | mm | 230×365×625 | 300×390×710 | 300×341×648 | 320×300×582 | 200×478×698 | 200×498×784 |
| 8 | weight | kg | 25 | 30 | 15 | 18 | 25 | 27 |
