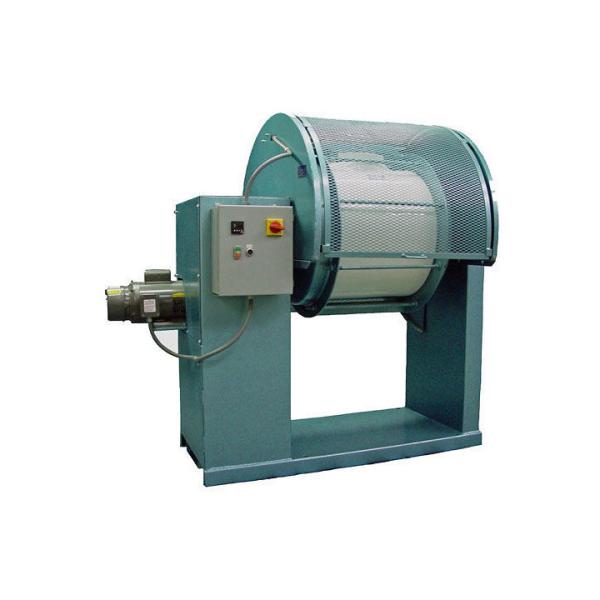

Stone Crushing 1.8×2.1mm Laboratory Ball Mill With Iso 9001
Certificate
Introduction:
Small ball mill is the main equipment for crushing materials after
crushing. Small ball mills can be divided into mesh-type ball mills
and overflow-type ball mills according to different ore discharge
methods. The experimental mill of balls produced by our company
from Φ0.9×1.12-Φ1.8×2.1, and the filling amount is 0.2-1.5t each
time, which can meet different experimental needs.
A ball mill consists of a hollow cylindrical shell rotating about
its axis. The axis of the shell may be either horizontal or at a
small angle to the horizontal. It is partially filled with balls.
The grinding media are the balls, which may be made of steel , stainless steel, ceramic, or rubber. The inner surface of the
cylindrical shell is usually lined with an abrasion-resistant
material such as rubber lining. Less wear takes place in rubber lined mills. The
length of the mill is approximately equal to its diameter.
Technical Parameters:
Item |
Value | Unit |
Remarks | | Diameter |
Φ600 |
mm | |
Length |
1200 |
mm | | | Effective Volume |
0.267 |
3 | | | Mill Speed | Rod Mill | Ball Mill |
r/min | | | 31 | 43 | | Feed Size |
15~25 |
mm |
≤10mmBest | | Discharging Size |
0.074~0.5 |
mm | |
Motor | Type | Power | | | | Y132M26 | 5.5kw | | Rod Mill | | Y132M4 | 7.5kw | | Ball Mill |
Throughput |
80~600 |
Kg/h | | | Outline Size |
2983×938×930 |
mm | |
Weight |
2000 |
kg | |
|
